Note :
We are taking orders , approx 3 weeks delivery
The Fischer Navigator Series Aneroid Precision Barometer is the best of the best when it comes to precision. Aneroid barometer for measuring the absolute atmospheric air pressure. Precision measuring mechanism with 5-fold aneroid can set made of copper-beryllium alloy, inherently stable.
Description
Aneroid barometer for measuring the absolute atmospheric air pressure. Precision measuring mechanism with 5-fold aneroid can set made of copper-beryllium alloy, inherently stable.
Measuring range 890 to 1050 hPa
Measuring accuracy ± 0.7 hPa
Scale graduation 0.5 hPa.

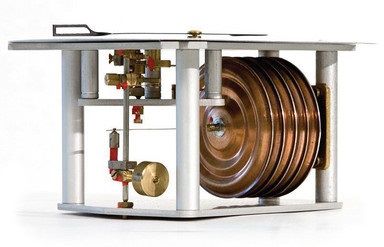

The aneroid cans are virtually free of ageing, hysteresis and elastic aftereffect. The temperature influence on the can set and the transmission system is compensated for by a bimetal over the entire measuring range and in a temperature range from -30 to +40 °C. The can stroke is transmitted to the pointer axis by means of a pinion and segment with extremely fine gearing. All bearing points are precision-polished. Due to the favourable design of the linkage and bearing points, the instruments have only minimal static friction.
<p>Inspired by marine chronometers, which are part of the obligatory inventory of a ship's bridge, FISCHER has created a limited "Black Edition" of the precision aneroid barometer in 2024, which has a particularly elegant look with its black lacquered solid wood case. The dial of the instrument is also black, while the bezel is made of brushed stainless steel. The double-edged index hand in the cover glass enables parallax-free reading of the measured value. The "Black Edition" is strictly limited to only 24 pieces, the serial number is noted on the type plate. The precision aneroid barometer is manufactured in the FISCHER workshops in the Ore Mountains.
Fischer aneroid from Germany, with a 5.5" dial and a 5-cell movement is among the best of the aneroids available today. This instrument has an accuracy of better than +|-0.7 mb over its full working range of 890 to 1050 mb. Fischer aneroids have been used at sea for 60 years.
David F. Burch, PhD, Director of the Starpath School of Navigation Seattle USA
Features:
Quality Barometer made in Germany
Measuring range 890 to 1050 hPa
Measuring accuracy ± 0.7 hPa
Scale graduation 0.5 hPa.
Wall Mounted
Stainless Steel & Presentation box wood
Has the same high accuracy and reading precision
Used for measuring the absolute atmospheric pressure
Indispensable for meteorology, ocean navigation, industry, and research
Have been used on land and sea continuously since the mid-1800s
A certificate of accuracy is provided with each instrument
Each has a unique serial number on a metal plate on the top of the instrument
Made of a corrosion-proof copper-beryllium-alloy
Full instructions on how to set up and use your barometer are in included with the device.
We offer a 2-year warranty on all our products; we can also offer a in house service centre if anything should go wrong
Sizes:
Barometer Dial 139mm or 5.5" inches
